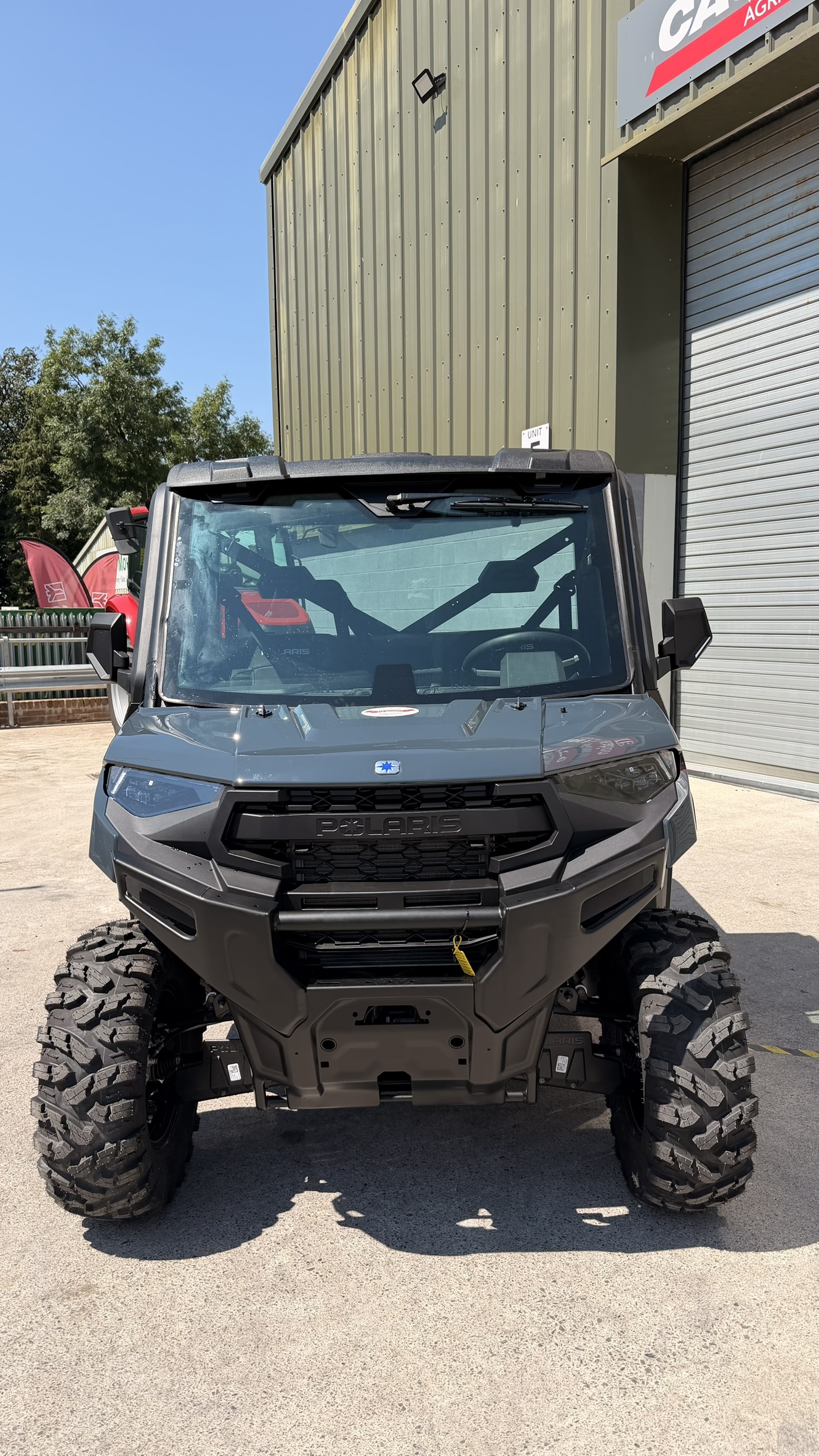

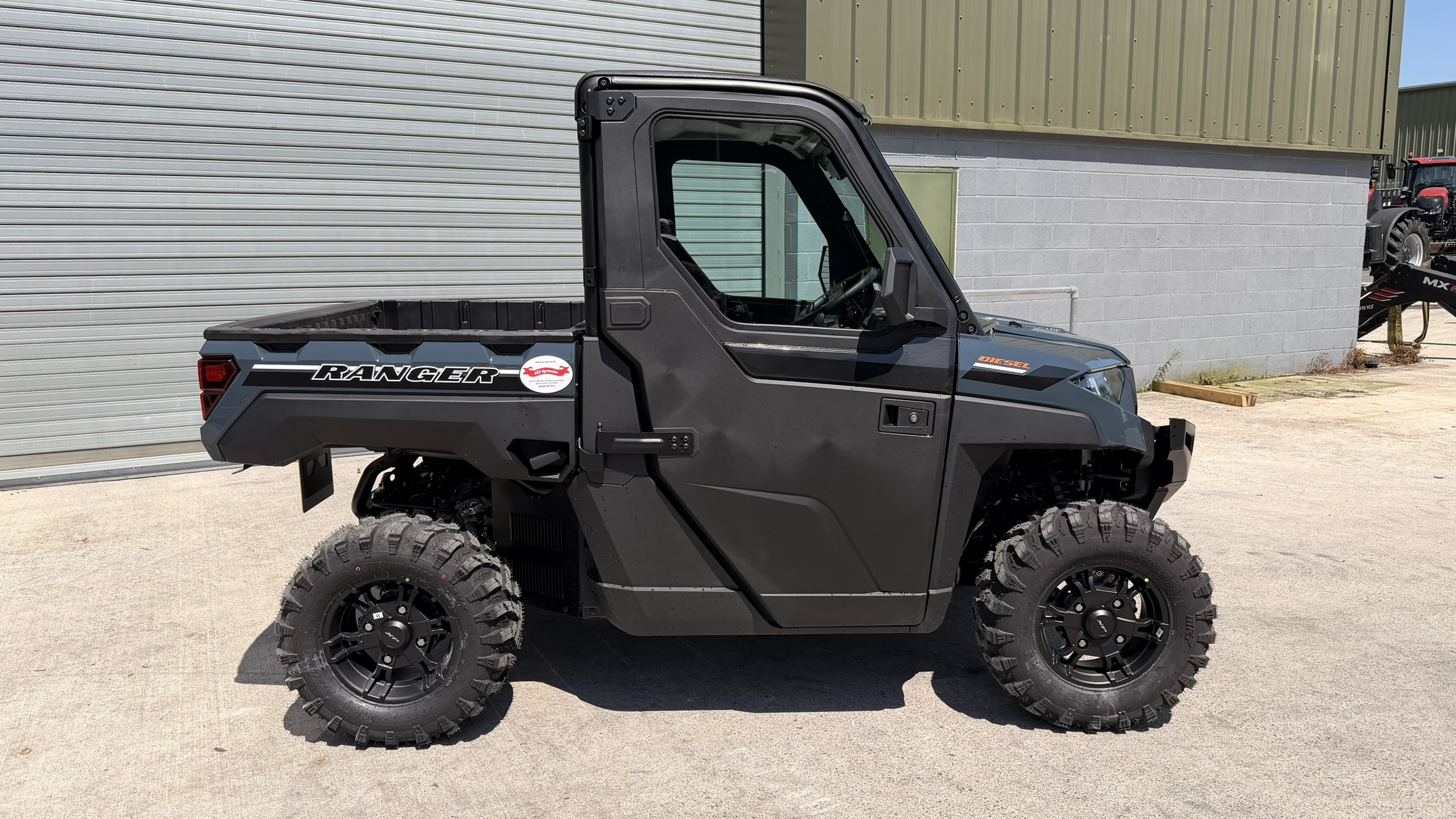

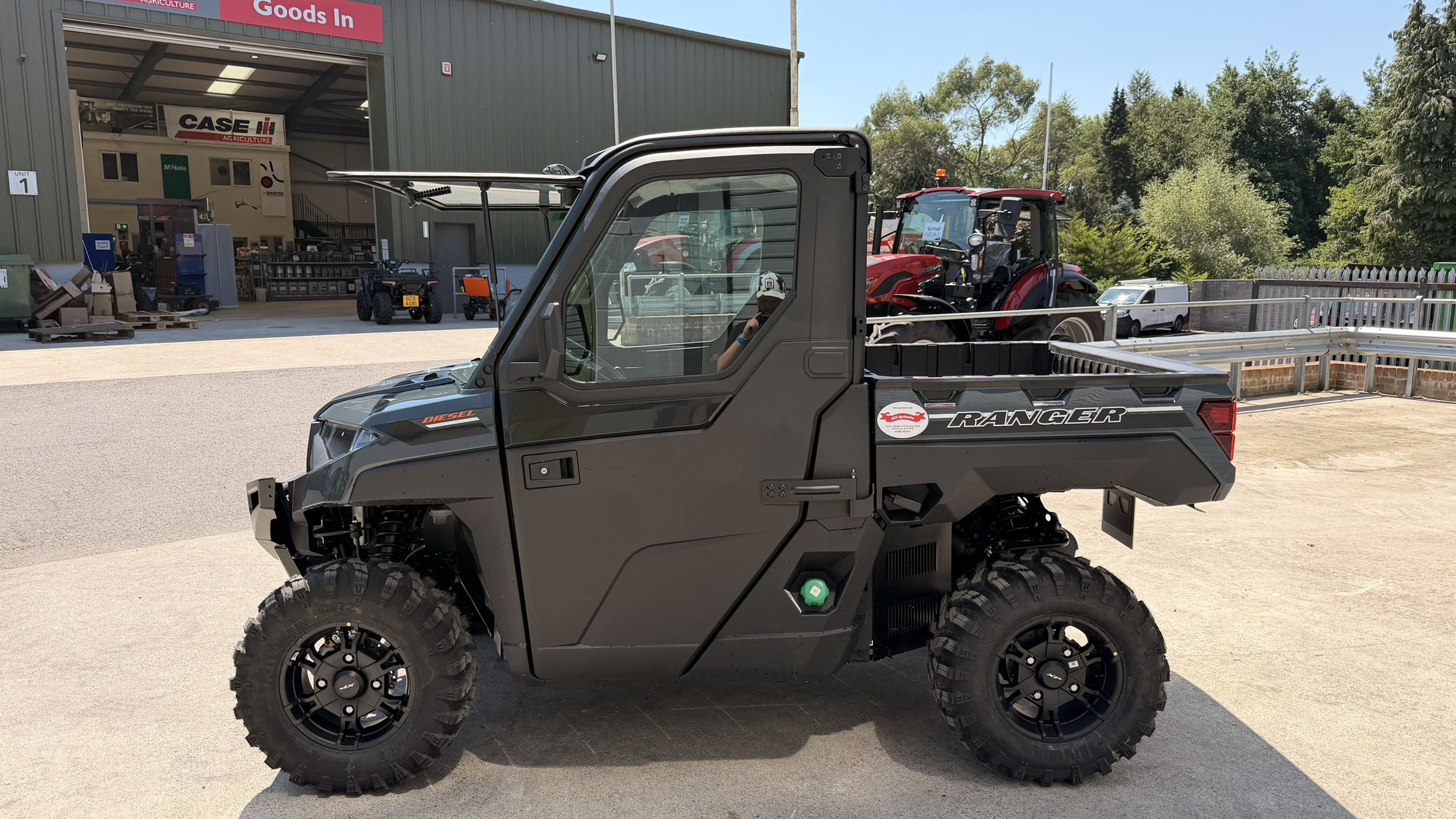

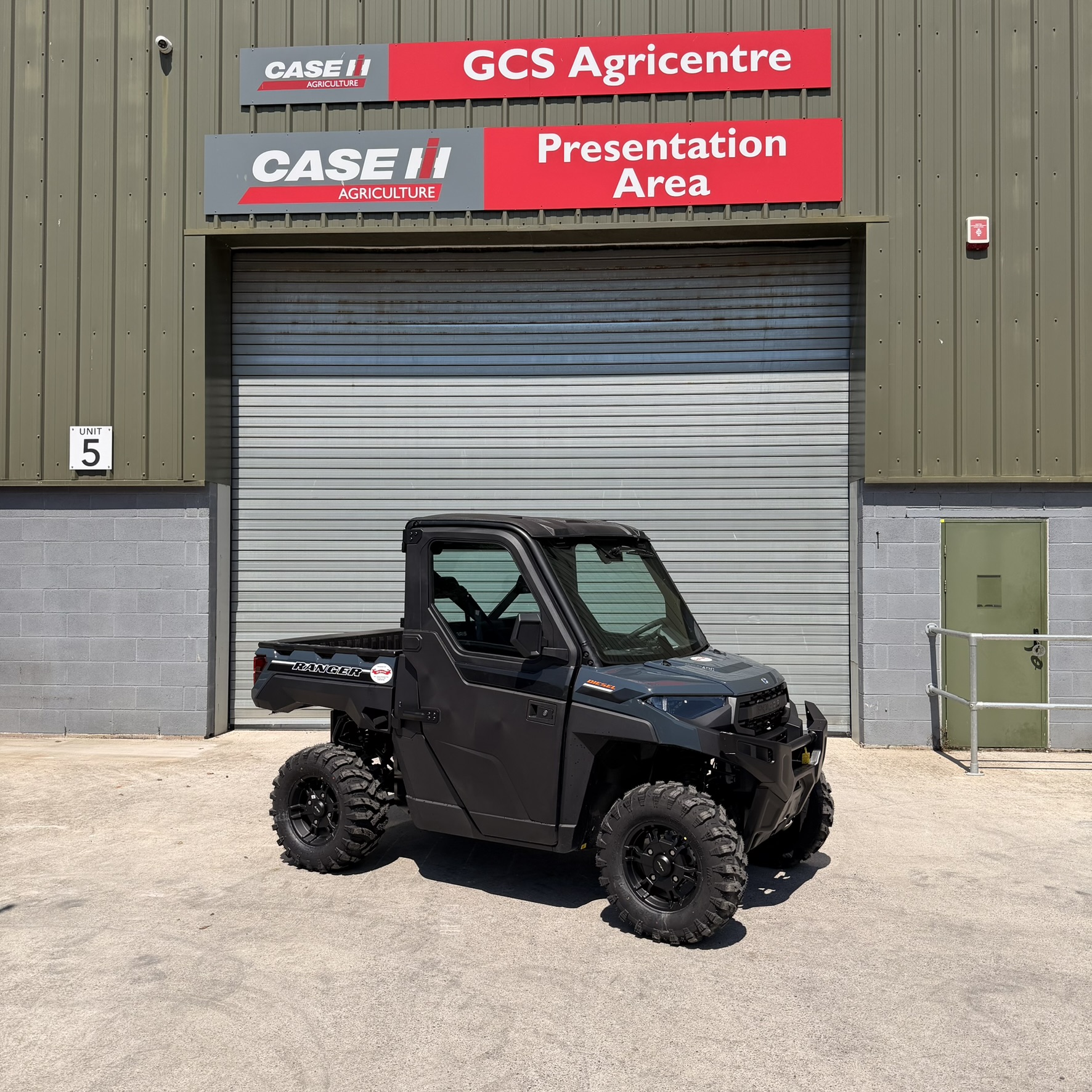

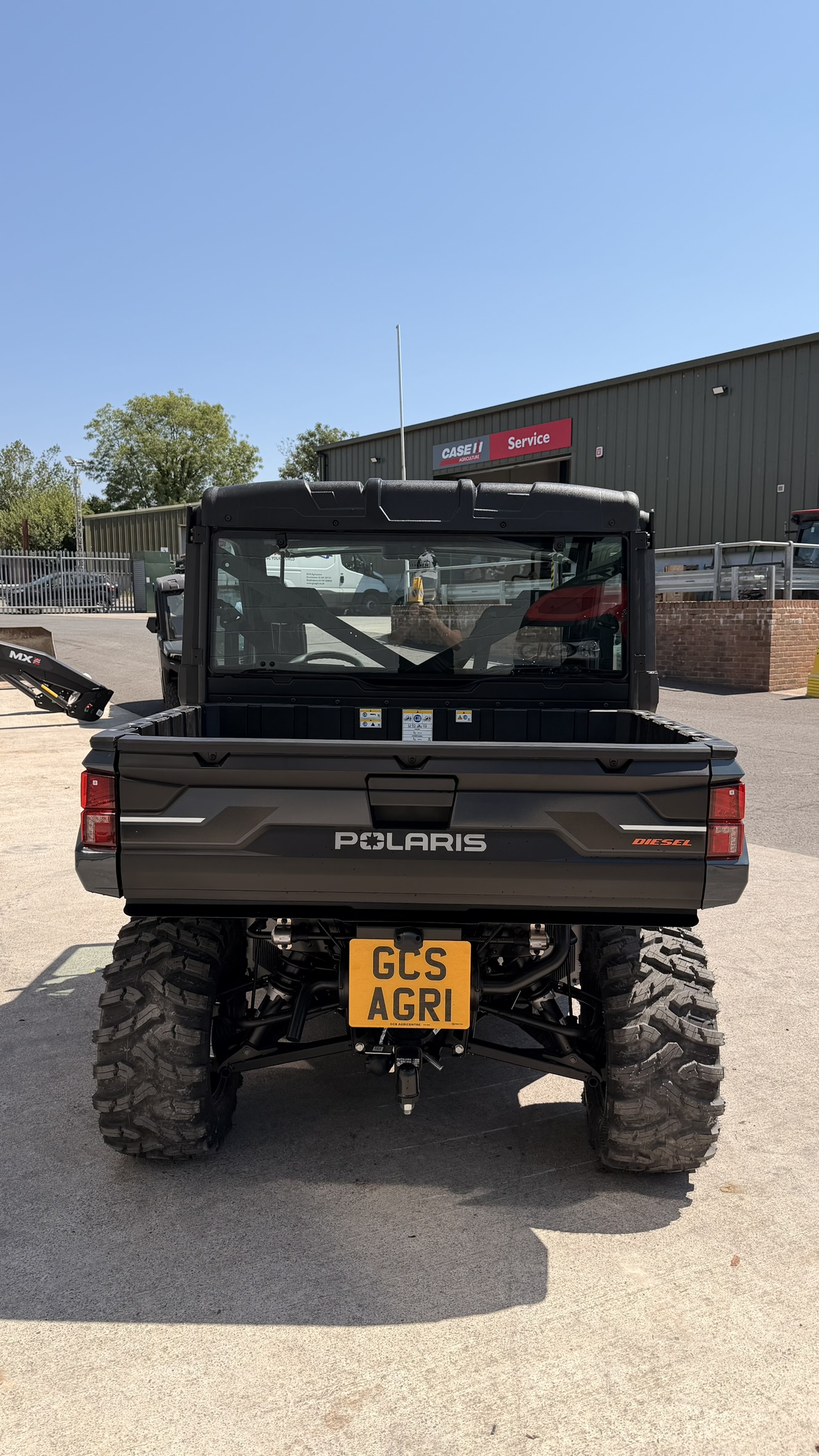

Polaris Ranger Diesel Deluxe

DIESEL STANDARD FEATURES:

25 HP Kubota Diesel Engine
2,500 Lb. (1,134 kg) Towing Capacity
1,000 Lb. (545 kg) Gas-Assist Dump Box
New Hight Output Electronic Power Steering (EPS)
New Gen 2 Transmission
Large Steel Front Bumper, Full-Coverage Skid Plate
27″ 8-Ply Pro Armor X-Terrain Tires
Active Descent Control (ADC) and Engine Braking System (EBS)

Cooling: Liquid
Cylinders-Displacement: 898cc
Drive System Type: High-performance on-demand true AWD/2WD/VersaTrac Turf Mode
Engine Type: Kubota 3-cylinder diesel
Fuel System/Battery: Mechanical injection
Engine Braking System: Yes
Transmission / Final Drive: Gen 2 Automatic PVT H/L/N/R/P; shaft

Bed Box Dimensions (L x W x H): 36.75 x 54.25 x 12.5″ (93 x 138 x 32 cm)
Front / Rear Rack or Box Capacity: 1,000 lbs. (454 kg)
Dry Weight: 1,773 lbs. (806 kg)
Fuel Capacity: 11.5 gal (43.5 L)
Ground Clearance: 12″ (33 cm)
Hitch Towing Rating: 2500 lbs. (1,134 kg)
Hitch Type: Receiver with ECE R55 ball
Overall Vehicle Size (L x W x H): 120 x 62.5 x 77″ (305 x 159 x 195 cm)
Payload capacity: 1117.2 lbs. (507.8 kg)
Person Capacity: 3
Turning Radius: 13′ (4 m)
Wheelbase: 81″ (206 cm)

Front Suspension: Dual A-arm, 10″ (25.4 cm) travel
Rear Suspension: Dual A-arm, 10″ (25.4 cm) travel
Front/Rear Brakes: 4-wheel hydraulic disc with dual-bore front and rear calipers
Parking Brake: Yes
Front Tyres: 27 x 9-14; Pro Armor X Terrain with Variable Tread Pattern
Rear Tyres: 27 x 11-14; Pro Armor X Terrain with Variable Tread Pattern
Wheels: 14″ Aluminium

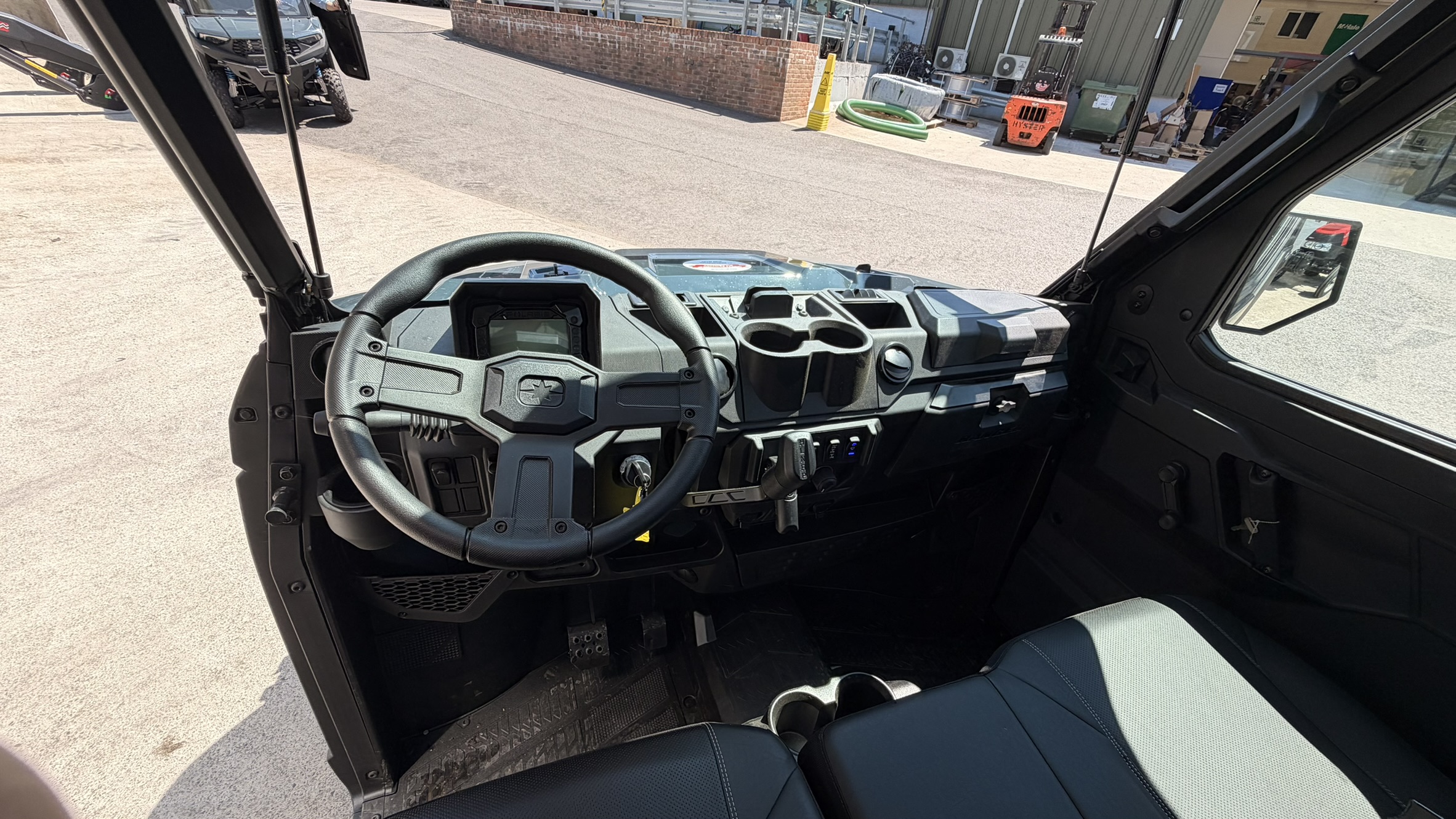

Driver Instrumentation: 4″ LCD rider information center: user-selectable blue/red backlighting and brightness, programmable service intervals, speedometer, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Seat Type: 3-person, bolstered bench seat with 3-point harness and adjustable driver seat
Electronic Power Steering: High-output EPS
Lighting: LED headlights & taillights with integrated turn signals
Door Type: Cab nets
Cargo System: Gas-assist dump box with Lock & Ride accessory integration
