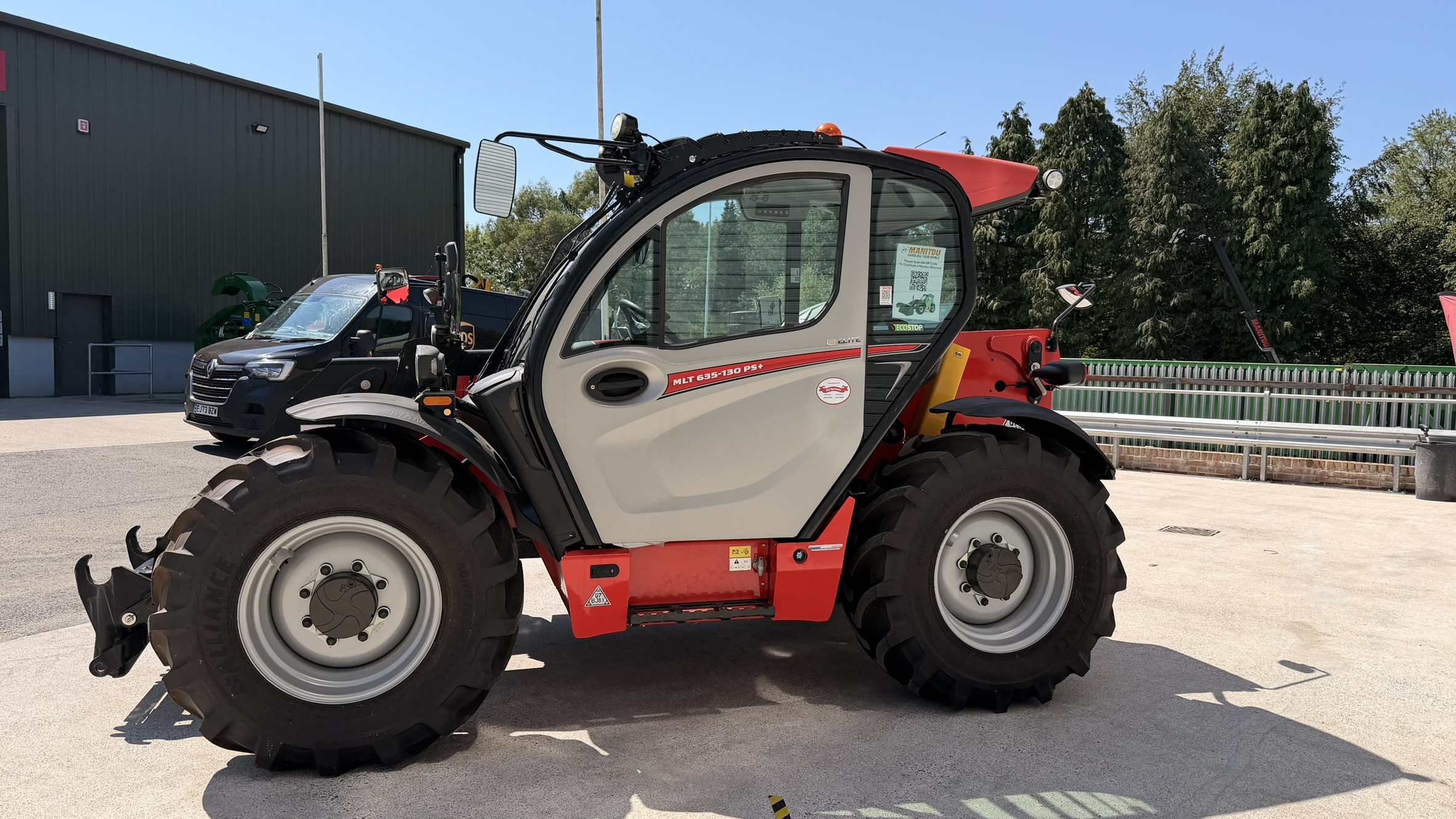

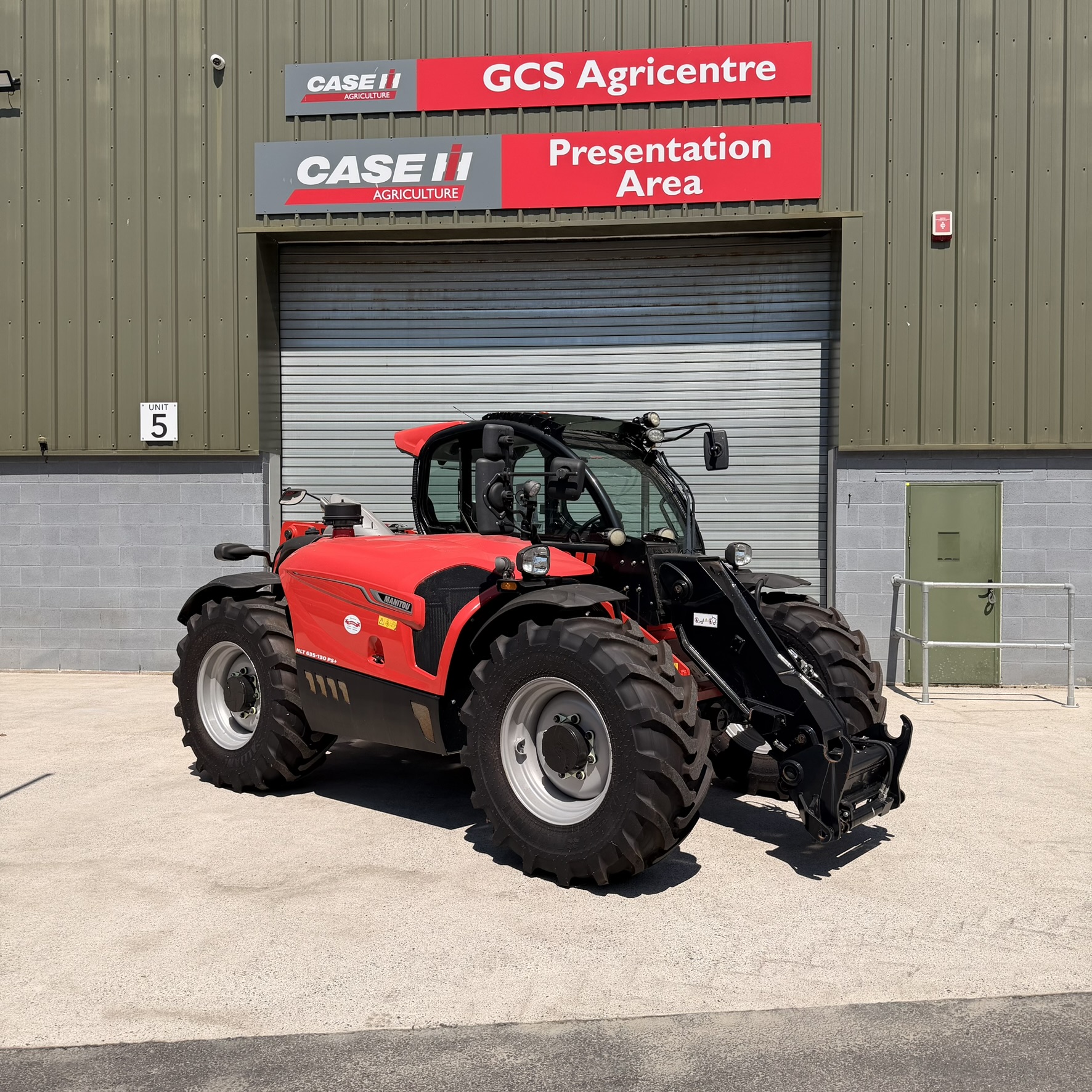

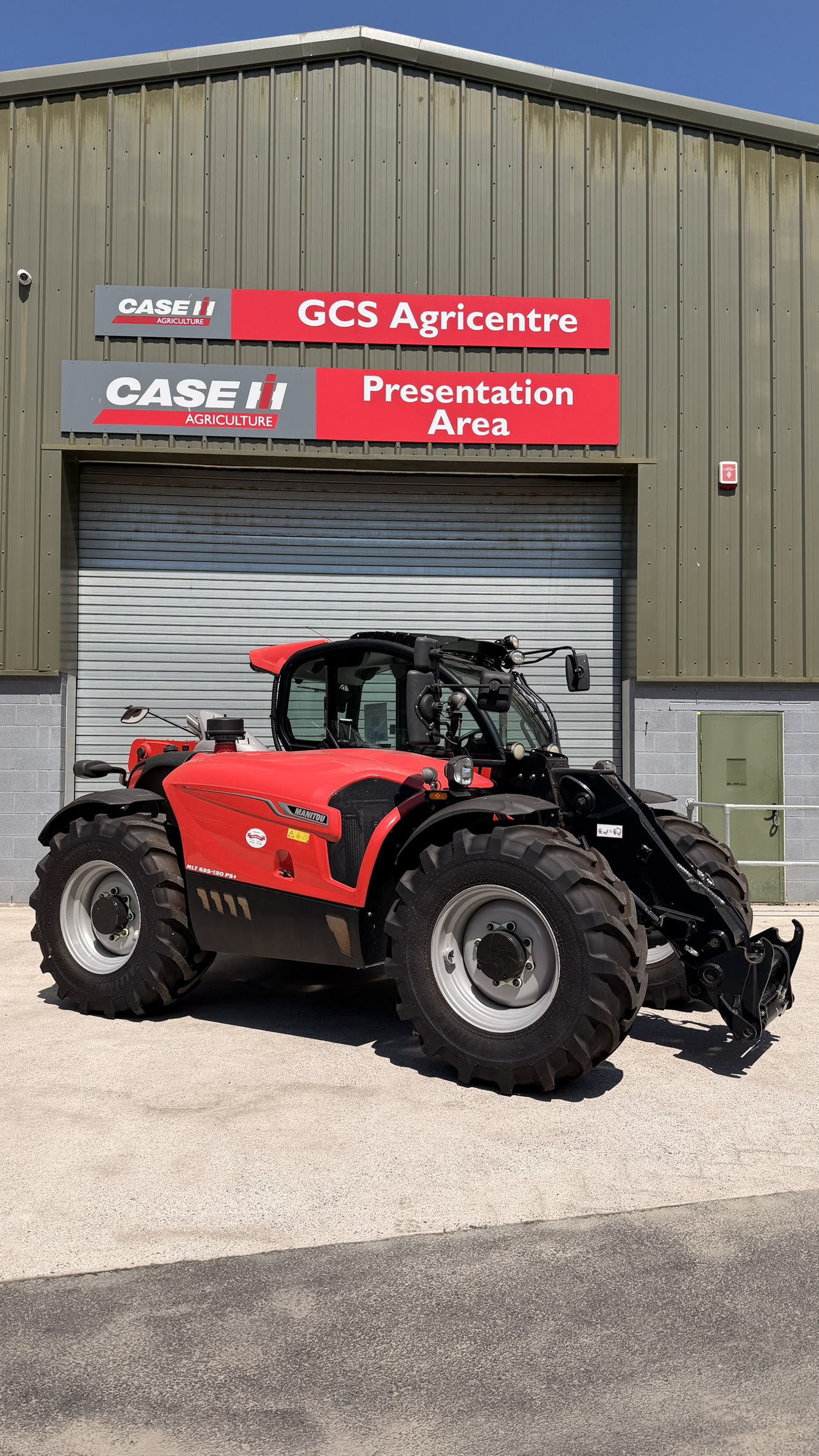

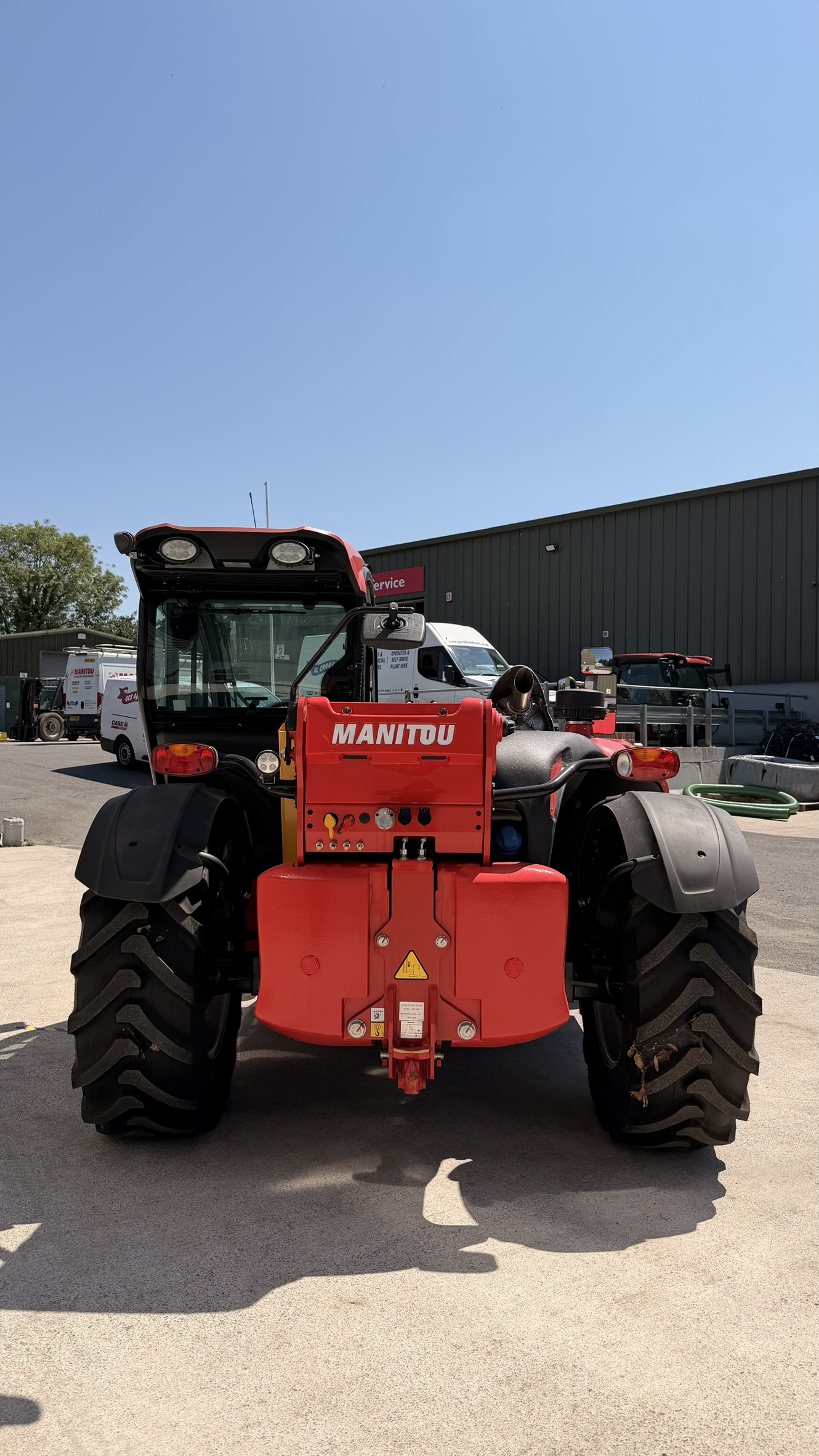

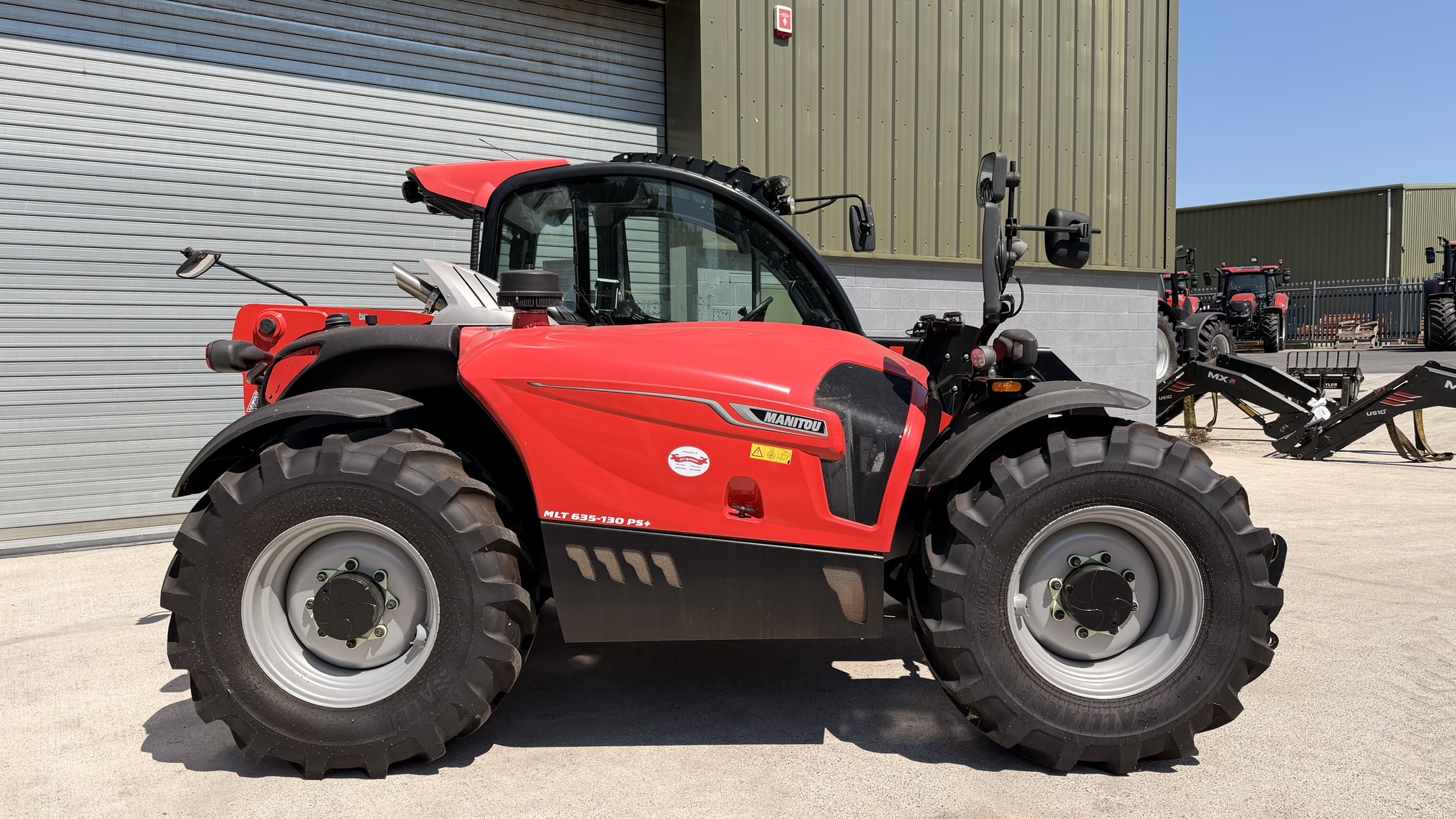

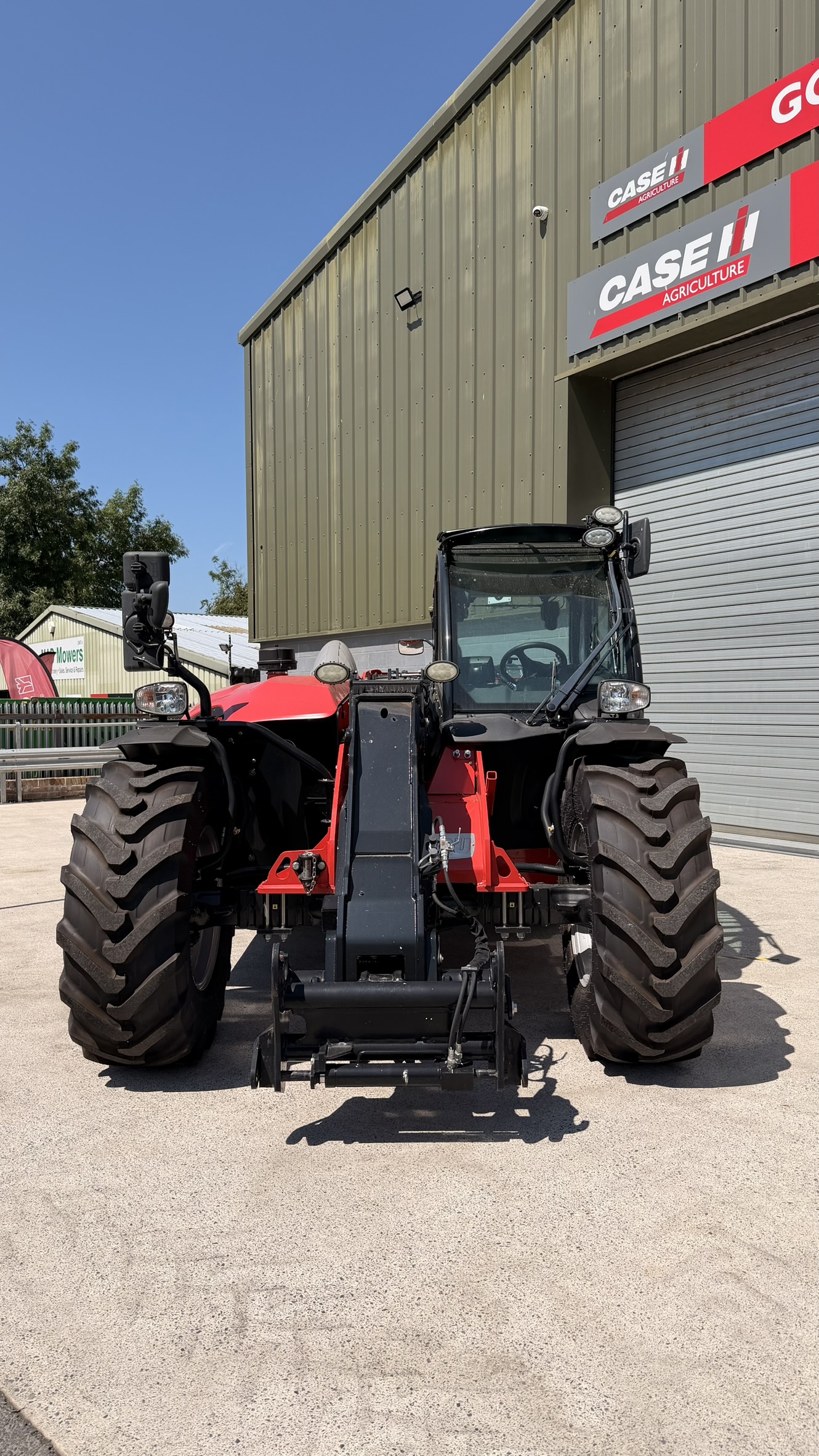

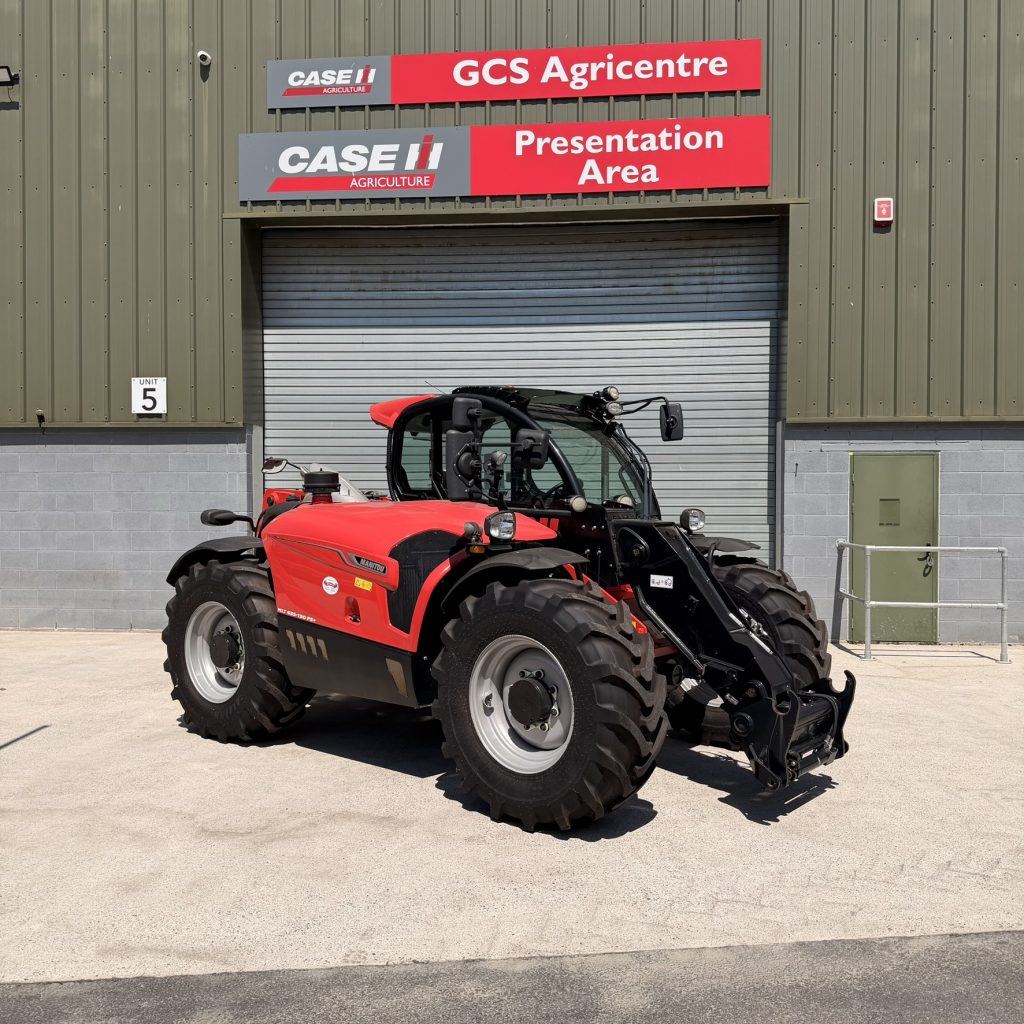

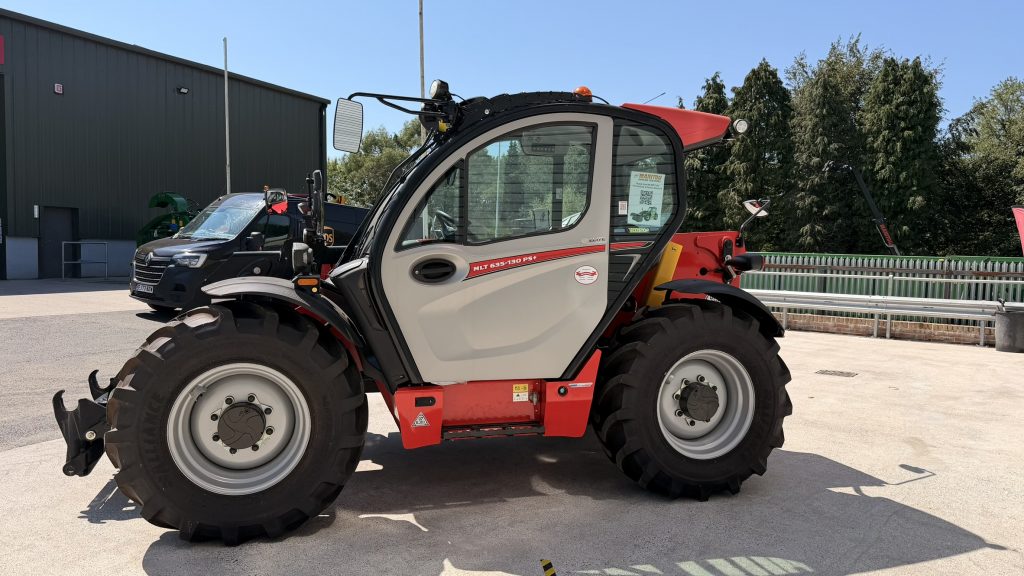

Manitou MLT635 130PS

Capacities

Max. capacity – 3500 kg

Max. lifting height – 6.08 m

Max. outreach – 3.20 m

Reach at max. height – 0.60 m

Breakout force with bucket – 5402 daN

Weight and dimensions

Unladen weight (with forks) – 7606 kg

Ground clearance – 0.41 m

Wheelbase – 2.60 m

Overall length to carriage (with hitch) – 4.66 m

Overall length to carriage (without hitch) – 4.50 m

Front overhang – 1.11 m

Overall width – 2.39 m

Overall cab width – 0.95 m

Overall height – 2.38 m

Tilt-down angle – 134 °

Tilt-up angle – 12 °

External turning radius (over tyres) – 3.77 m

Standard tires – Alliance – A580 – 460/70 R24 159A8

Drive wheels (front / rear) – 2 / 2

Steering mode – Manicrab, 2 wheel steer, 4 wheel steer, Crab mode

Performances

Lifting – 5.80 s

Lowering – 4.50 s

Extension – 3.70 s

Retraction – 3.80 s

Crowd – 2.50 s

Dump – 2.20 s

Engine

Engine brand – Deutz

Engine norm – Stage V

Engine model – TCD 3.6 L4

Number of cylinders – Capacity of cylinders – 4 – 3621 cm³

Engine power (Hp / kW) – 129 Hp / 95 kW

Max. torque / Engine rotation – 500 Nm @1600 rpm

Drawbar pull (Laden) – 8500 daN

Reversible fan – Standard

Engine cooling system – 4 radiators (water + intercooler + hydraulic oil + transmission oil)

HVO validated (according to EN 15940 standard) – Yes

Transmission

Transmission type – Torque converter

Gearbox – Powershift

Number of gears (forward / reverse) – 6 / 3

Max. travel speed (may vary according to applicable regulations) – 40 km/h

Differential lock – Limited slip differential on front axle

Parking brake – Automatic negative parking brake

Service brake – Oil-immersed multi-discs braking on front & rear axles

Hydraulics

Hydraulic pump type – Variable displacement pump

Hydraulic flow – Pressure – 150 l/min – 270 bar

Flow sharing distributor – Standard

Tank capacities

Hydraulic tank capacity – 135 l

Fuel tank capacity – 120 l

Diesel Exhaust fluid (AdBlue® type) tank capacity – 10 l

Noise and vibration

Noise at driving position (LpA) tested following NF EN 12053 norm – 72 dB

Noise to environment (LwA) – 105 dB

Vibration on hands/arms – < 2.50 m/s²

Miscellaneous

Tractor homologation – Tractor homologation

Cab certification – Cabin ROPS – FOPS level 2

Controls – JSM

Manitou MLT635 130PS

Capacities

Max. capacity – 3500 kg

Max. lifting height – 6.08 m

Max. outreach – 3.20 m

Reach at max. height – 0.60 m

Breakout force with bucket – 5402 daN

Weight and dimensions

Unladen weight (with forks) – 7606 kg

Ground clearance – 0.41 m

Wheelbase – 2.60 m

Overall length to carriage (with hitch) – 4.66 m

Overall length to carriage (without hitch) – 4.50 m

Front overhang – 1.11 m

Overall width – 2.39 m

Overall cab width – 0.95 m

Overall height – 2.38 m

Tilt-down angle – 134 °

Tilt-up angle – 12 °

External turning radius (over tyres) – 3.77 m

Standard tires – Alliance – A580 – 460/70 R24 159A8

Drive wheels (front / rear) – 2 / 2

Steering mode – Manicrab, 2 wheel steer, 4 wheel steer, Crab mode

Performances

Lifting – 5.80 s

Lowering – 4.50 s

Extension – 3.70 s

Retraction – 3.80 s

Crowd – 2.50 s

Dump – 2.20 s

Engine

Engine brand – Deutz

Engine norm – Stage V

Engine model – TCD 3.6 L4

Number of cylinders – Capacity of cylinders – 4 – 3621 cm³

Engine power (Hp / kW) – 129 Hp / 95 kW

Max. torque / Engine rotation – 500 Nm @1600 rpm

Drawbar pull (Laden) – 8500 daN

Reversible fan – Standard

Engine cooling system – 4 radiators (water + intercooler + hydraulic oil + transmission oil)

HVO validated (according to EN 15940 standard) – Yes

Transmission

Transmission type – Torque converter

Gearbox – Powershift

Number of gears (forward / reverse) – 6 / 3

Max. travel speed (may vary according to applicable regulations) – 40 km/h

Differential lock – Limited slip differential on front axle

Parking brake – Automatic negative parking brake

Service brake – Oil-immersed multi-discs braking on front & rear axles

Hydraulics

Hydraulic pump type – Variable displacement pump

Hydraulic flow – Pressure – 150 l/min – 270 bar

Flow sharing distributor – Standard

Tank capacities

Hydraulic tank capacity – 135 l

Diesel Exhaust fluid (AdBlue® type) tank capacity – 10 l

Noise and vibration

Noise at driving position (LpA) tested following NF EN 12053 norm – 72 dB

Noise to environment (LwA) – 105 dB

Vibration on hands/arms – < 2.50 m/s²

Miscellaneous

Tractor homologation – Tractor homologation

Cab certification – Cabin ROPS – FOPS level 2

Controls – JSM
